Overview


This article explains how to configure PDA Unitech to work with BMS Mobile for myFulfillment

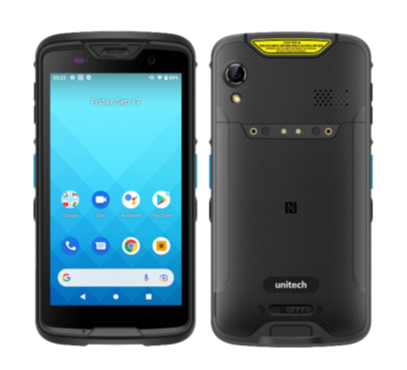

Note: this configuration has been tested on a Unitech EA660 device only


Unitech configuration


In order to make the barcode scanner working with BMS Mobile, you must open application USS Profile and configure it this way.

First, you must create a new profile, you can name it "BMS" and save.

Then go into this new BMS profile and follow these steps:

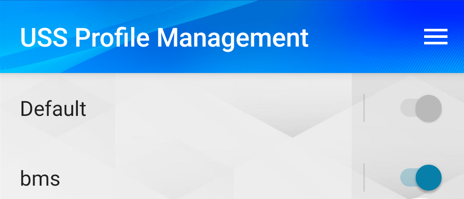

You must have the profile enabled:

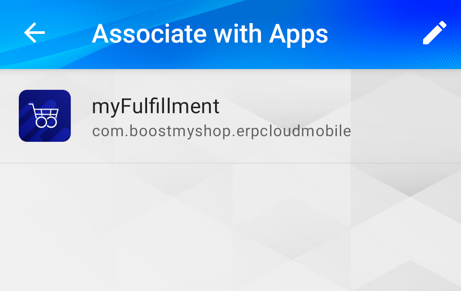

In the "App association" menu, select application myFulfillment:

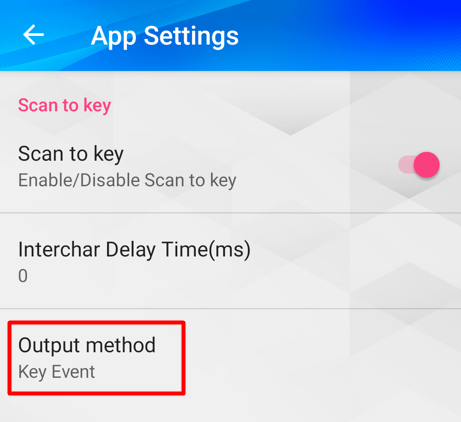

Next go in menu "App settings" and enable option "Scan to key" and select "Key event" for the "Output method":

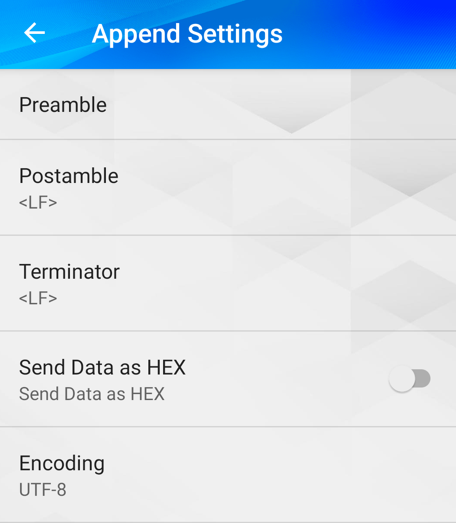

Next, go back in the main menu and select entry "Append settings" and configure it like this:


Restart the device and launch BMS Mobile, you should be able to scan barcodes now !
